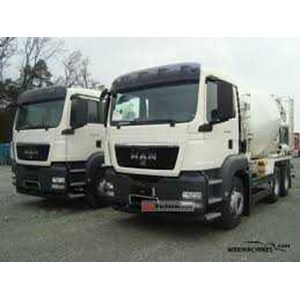

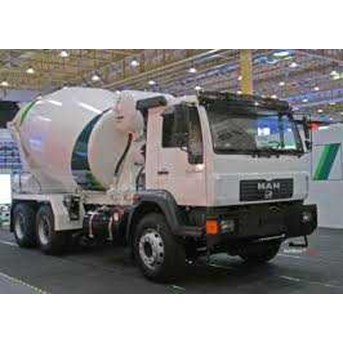

Detail Truck Mixer MAN 6x4
PT Duta Putera Sumatera ( Sun Motor Grup ) selaku distributor resmi Truck Bus Merk MAN ( jerman ) untuk wilayah Indonesia, memiliki beberapa varian type truck untuk kelancaran usaha transportasi. Kami memiliki varian prime mover / truck head 4X2 dengan harga yang kompetitif dibandingkan dengan truck lokal dengan dukungan after sales service yang lebih baik, dan ketersediaan sparepart hingga 80% untuk masing masing cabang sehingga customer tidak perlu khawatir dan ragu dengan produk Truck MAN. Untuk spek teknis :
Technical Specifications
4. CLA Mixer
Technical Specifications
Chassis

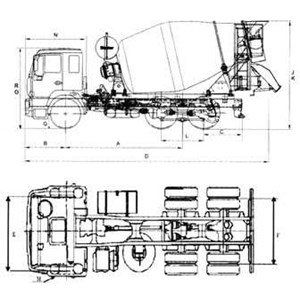

DIMENSIONS in millimeters (mm)
Wheelbase
(A) 3175;3825
Front Overhang
(B)1293
Rear Overhang
(C) 900
Overall length
(D) 7420;8070
Front Track
(E) 2075
Rear Track
(F) 1815
Minimum Ground Clearance (at front)
(G) 273
Turning Circle Diameter (meters)
(H) 18,5;19,5
Distance between Two Rear Axles
(L) 1400
Cabin Length
(N) 1790
Maximum Height from ground (Unladen)
(J) 3590
Maximum Height from ground (Laden)
(K) 3550
Height to cab top, unladen
(R) 2766
Height to cab top, laden
(O) 2726
Unladen (Kerb Weight)
Laden
Front Axle
3.550
7.500
Rear Axle
4.300
23.000
TOTAL
7.850
26.000
Model : CLA 26.280 6x4 Mixer Truck
Engine : MAN-D0836
-Six cylinder in-line Diesel Engine with Direct Injection Turbocharged and Intercooled
-Displacement 6,9 liters
-Power Output 280 HP ( 206 kW) @ 2400 rpm
-Torque 1100 Nm @ 1300 – 1700 rpm
-Economic Speed Range 1400-1700 rpm
-Emission EURO-III
Clutch : - Single dry plate pull type power assisted asbestos free clutch
- Clutch plate diameter 430 mm
Gearbox : ZF FORCE 9S-1110 TO
- 9 Speed Synchronized range gearbox with crawler and reverse gears
- Force-Feed oil lubrication by oil pump, full flow oil filter
Exhaust : Horizontal Exhaust toward rear
PTO : Engine PTO
Front Axle : MAN Heavy Duty FM 08 Dropped Type
Rear Axle : MAN FORCE H9 & HD9 13120
- Hub Reduction with inter axles differential lock
- Boggie suspension on Tandem Axles with stabilizer bar and radius rods to ensure stability in off road conditions
- Planetary axle Ratio i : 5,26
- Tyre : 11.00 R 20
